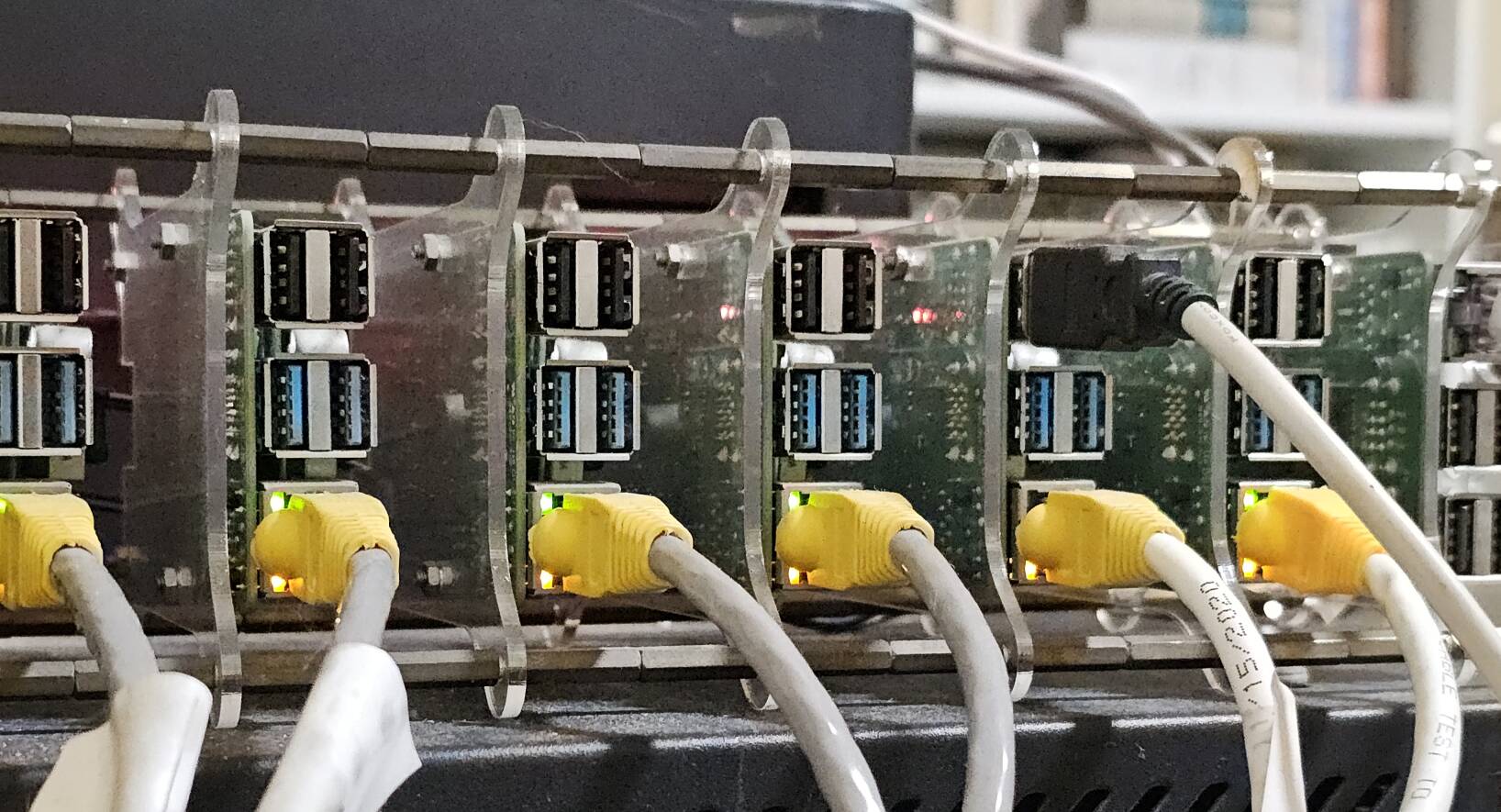

After four (or more) years of trying and failing, I finally have a fully working plain Kubernetes system running on my Raspberry Pi cluster with kubeadm. Persistent storage hasn’t been set up yet but LoadBalancer services are available with Cilium and backed with BGP, talking to an OPNsense router.

~% kubectl get pods -A
NAMESPACE     NAME                               READY   STATUS    RESTARTS   AGE
kube-system   cilium-8gs69                       1/1     Running   3          4d20h
kube-system   cilium-chnzb                       1/1     Running   3          4d20h
kube-system   cilium-k86sc                       1/1     Running   4          4d20h
kube-system   cilium-operator-65496b9554-64bwh   1/1     Running   3          3d10h
kube-system   coredns-7789cccdc4-czj2z           1/1     Running   2          2d11h
kube-system   coredns-7789cccdc4-vtrfd           1/1     Running   1          35h
kube-system   etcd-node06                        1/1     Running   4          5d20h
kube-system   hubble-relay-7b8fb45847-976xn      1/1     Running   17         5d11h
kube-system   kube-apiserver-node06              1/1     Running   4          5d20h
kube-system   kube-controller-manager-node06     1/1     Running   4          5d20h
kube-system   kube-proxy-2pq5z                   1/1     Running   3          5d20h
kube-system   kube-proxy-6vtpf                   1/1     Running   4          5d20h
kube-system   kube-proxy-wlz6x                   1/1     Running   4          5d20h
kube-system   kube-scheduler-node06              1/1     Running   4          5d20h

“Production” use of this cluster for services at home isn’t there yet because I need to first learn:

  1. how to upgrade the cluster
  2. how to fix a broken cluster
  3. what good persistent storage backend is feasible
  4. how to preserve source IP addresses as traffic passes through the load balancer VIP

I was trying to use Calico because it’s what I commonly see with tutorials. And then Cilium was brought into the picture when I saw it included in EKS Anywhere. Since $dayJob has EKS Anywhere in the roadmap, I might as well try to mimic that configuration and eventually deploy an actual EKS Anywhere cluster at home.

I’m probably years behind the curve now but better late than never.
